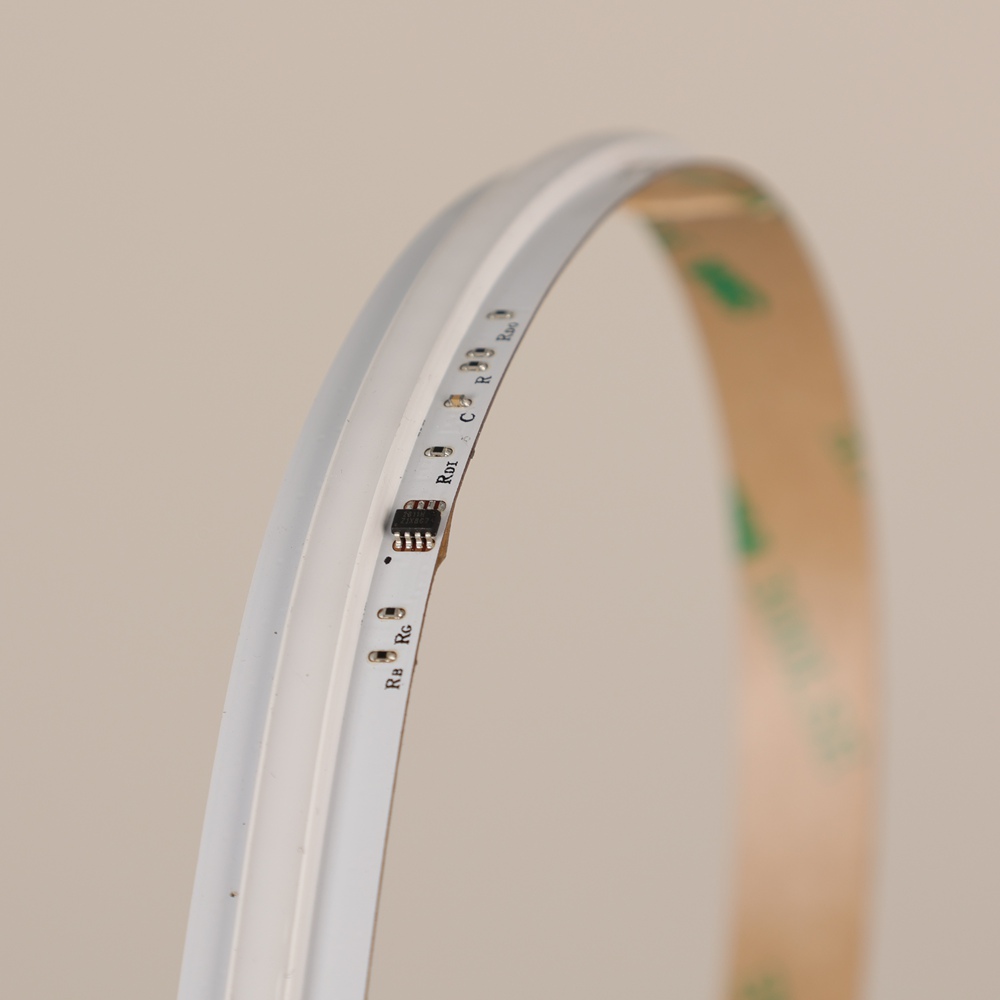

https://cdn.oss.rishangled.com/upload/images/product/20260710/rishang-rgb-cob-strip-rm0240mk-haa1-2.JPG

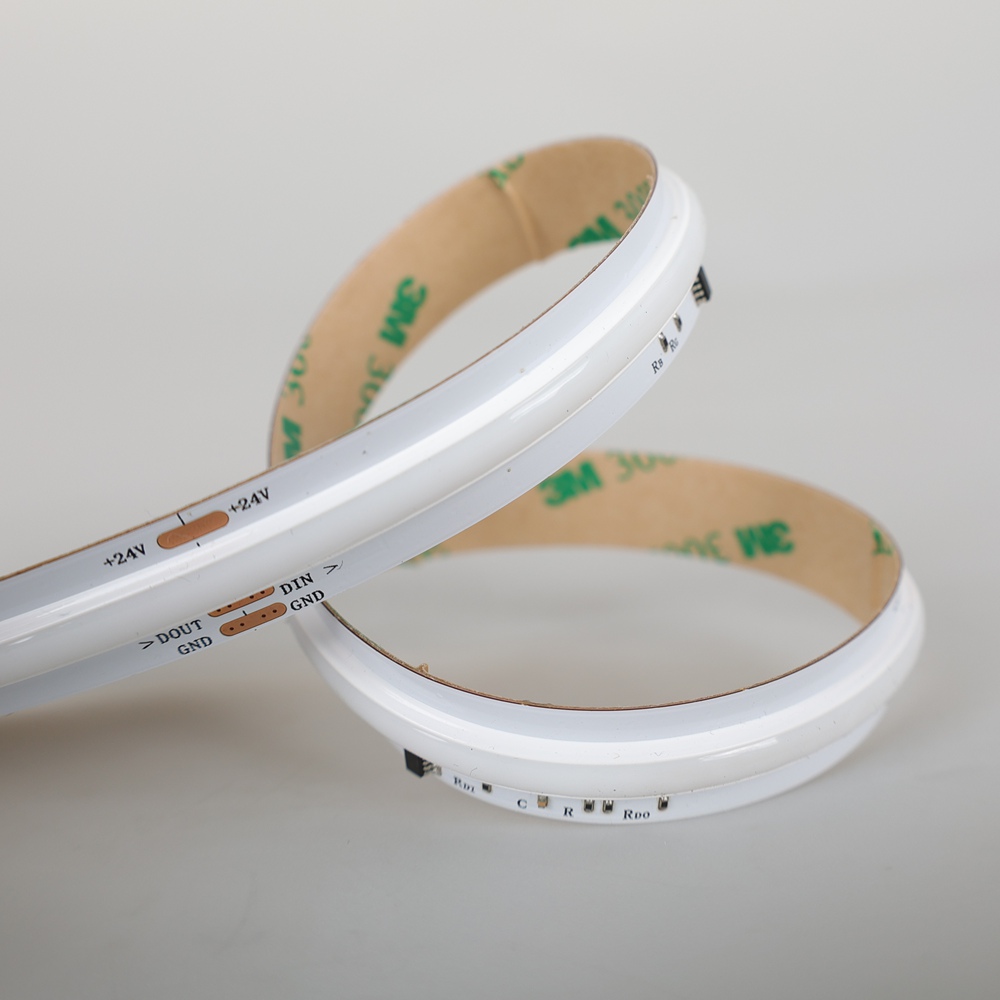

https://cdn.oss.rishangled.com/upload/images/product/20260710/rishang-rgb-cob-strip-rm0240mk-haa1-3.JPG

https://cdn.oss.rishangled.com/upload/images/product/20260710/rishang-dam-art-cob-strip-rm0240mk-haa1-effect.jpg

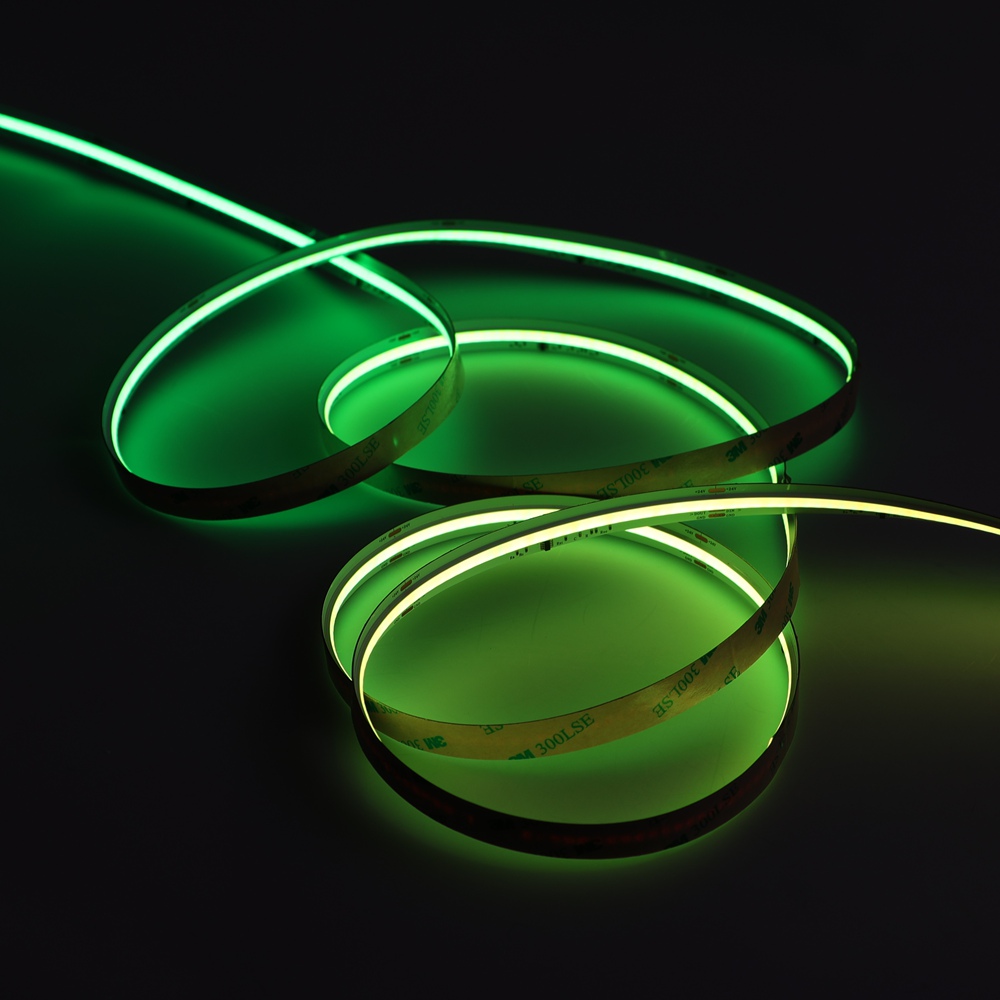

https://cdn.oss.rishangled.com/upload/images/product/20260710/rishang-green-light-strip-rm0240mk-haa1-effect.JPG

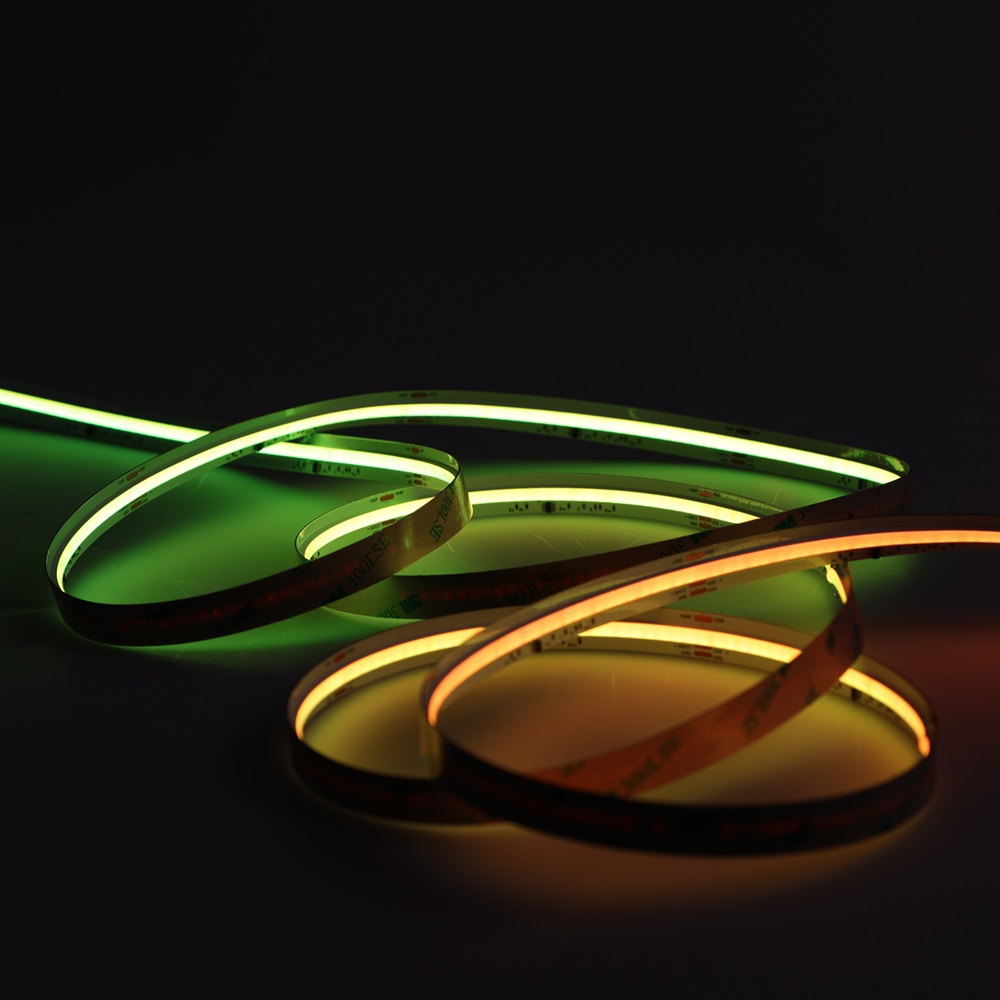

COB Strip-RM0240MK-HAA1

840Chips-12mm-24V-8.5W/m-Dam-Art

Dynamic RGB Effects

Create smooth chasing, flowing, and animated lighting with 10 addressable pixels per meter.

Seamless Linear Lighting

COB Dam-Bar technology delivers continuous, dot-free illumination with a premium appearance.

Reliable Pixel Control

External constant-current IC ensures stable color output and dependable long-term performance.

Flexible Applications

Ideal for entertainment, retail, architectural, and outdoor lighting projects.

Poster

Parameter

Size

Lighting Distribution

Layout Data

Video

Download

Accessories

Message

Product Poster

Technical Parameter

P/N	LED Color	CCT (K)	CRI	SDCM	Beam Angle(°)	Luminous Flux(Lm/m)	Luminous Efficacy (Im/w)	Voltage(DC V)	Power(W/m)
RM0240MK-HAA1	Red	620-625	/	/	≥115	-	/	24	/
RM0240MK-HAA1	Green	522.5-5 30	/	/	≥115	-	/	24	/
RM0240MK-HAA1	Blue	452.5-4 57.5	/	/	≥115	-	/	24	/

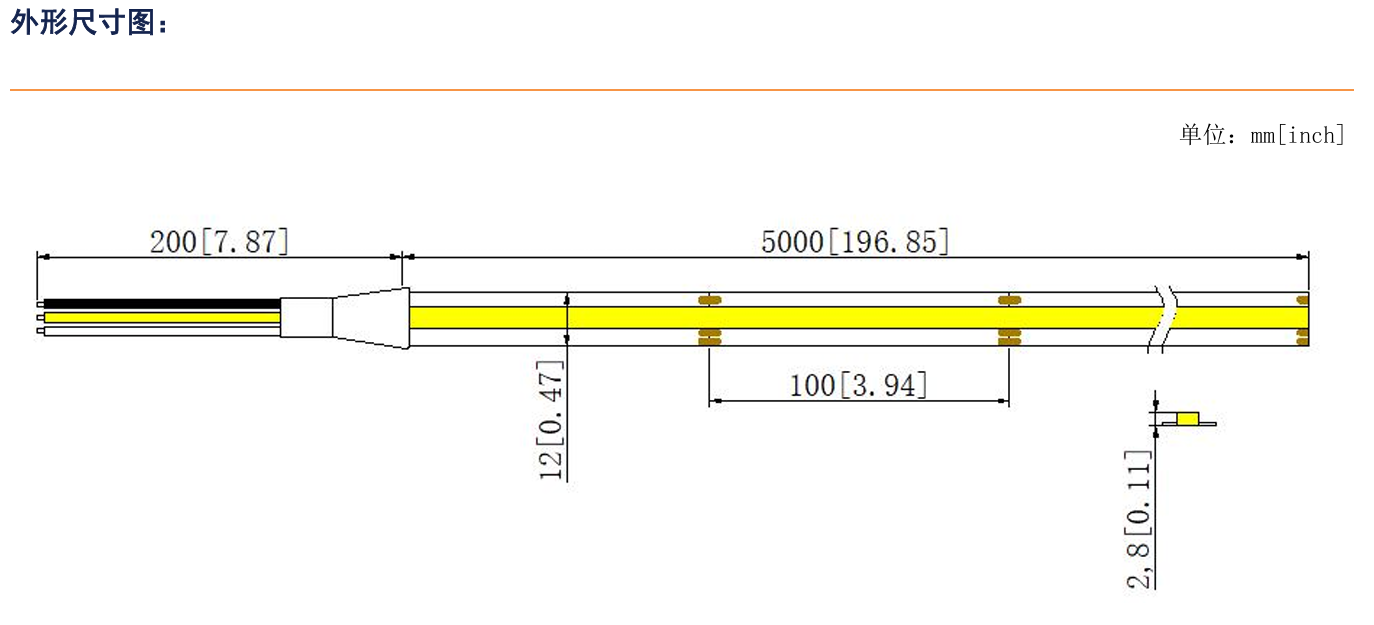

Product Size

rishang-dam-art-cob-strip-rm0240mk-haa1-size

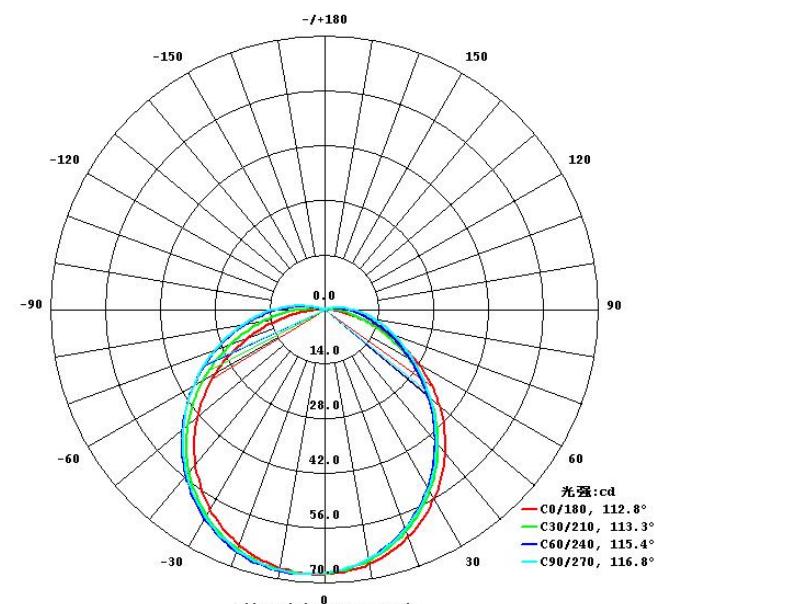

Light Distribution

rishang-blue-rgb-cob-strip-rm0240mk-haa1-light-distribution

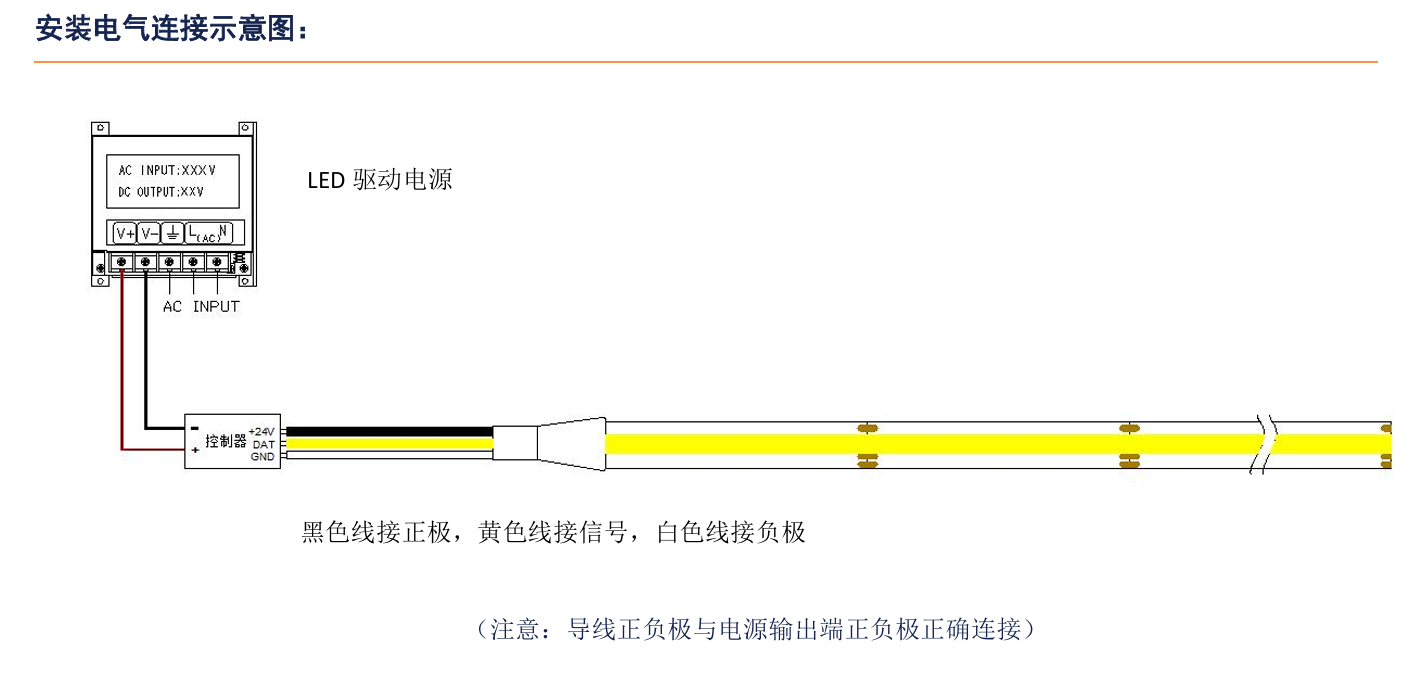

Layout Data

rishang-dam-art-cob-strip-rm0240mk-haa1-install

Data Download

Specification

Accessories

Dimmer

Model: KG1CH-008-A01

Input Voltage (Receiver): DC12/24V

Working Voltage (Remote Controller): 3VDC(CR2032 Botton Cell)

Output Type: PWM output, Constant Voltage

Output Current: 1 Channel，≤8A per channel

Output Power: 12V<96W ，24V<192W

Output Signal: RF2.4GHz

Light: Single Color

Control Sector: Single Sector

Standby time: 12 Months

Control Distance: 30 Meters

Cable-Board Connector

Application: 12mm

Model: 1CN-07-288

Cable-Board Connector

Application: 12mm

Model: 1CN-07-212
