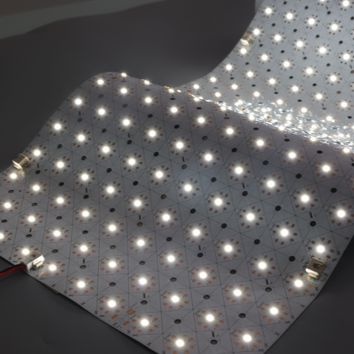

LED Sheet RE0LL0TC-V1

SMD-200LEDs/PCS-DC 24v-15W Single-Color

   Freely Cut, Designed for Any Shape

   Single-LED-unit cutting allows custom dimensions and precise adaptation to curved and irregular architectural surfaces.

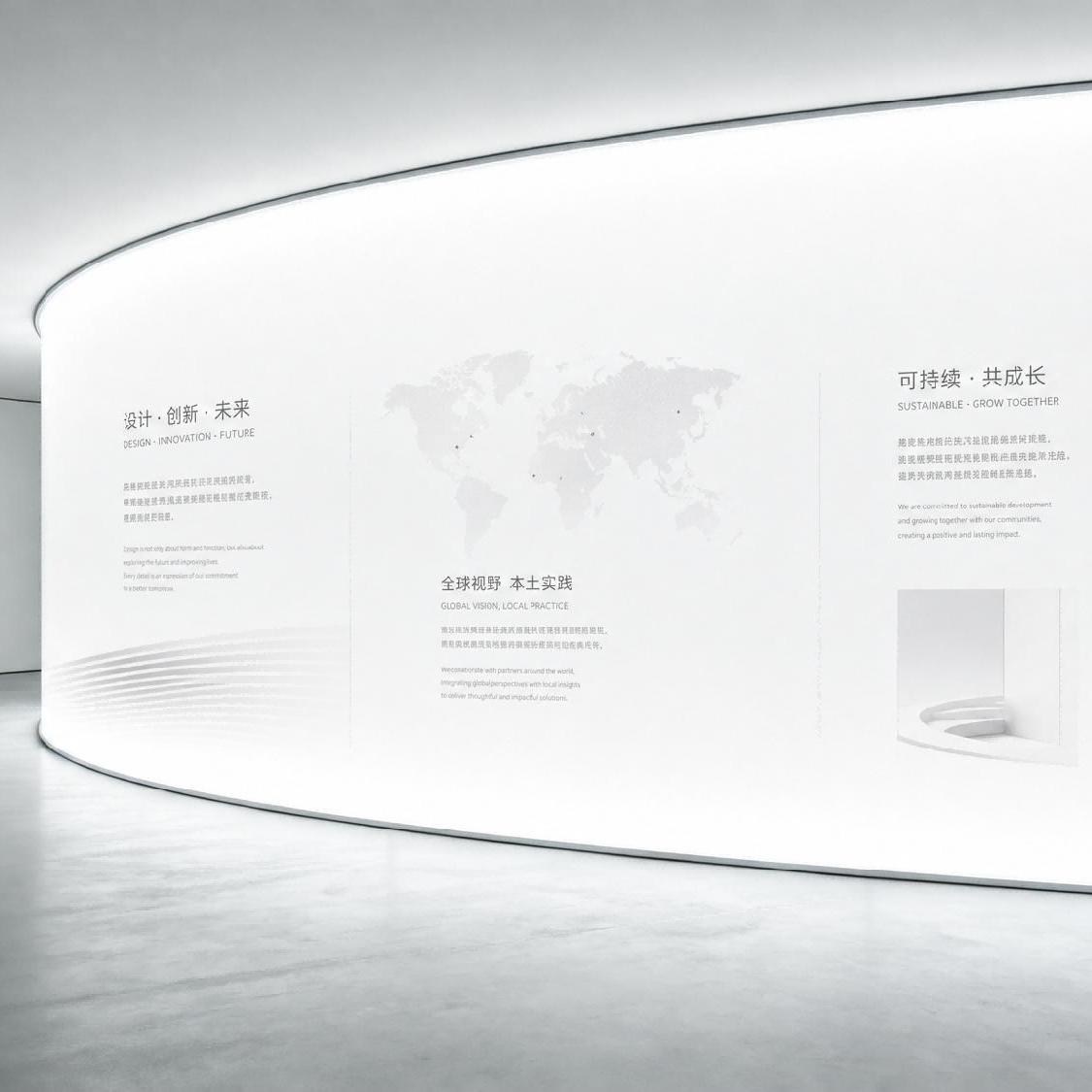

   Professional Light Uniformity

   Single-bin production and seamless splicing ensure consistent color temperature, brightness, and smooth illumination without hotspots.

   Fast, Solder-Free Installation

   Standard XH-2P connectors support quick power input and board-to-board connection, reducing installation time and labor costs.

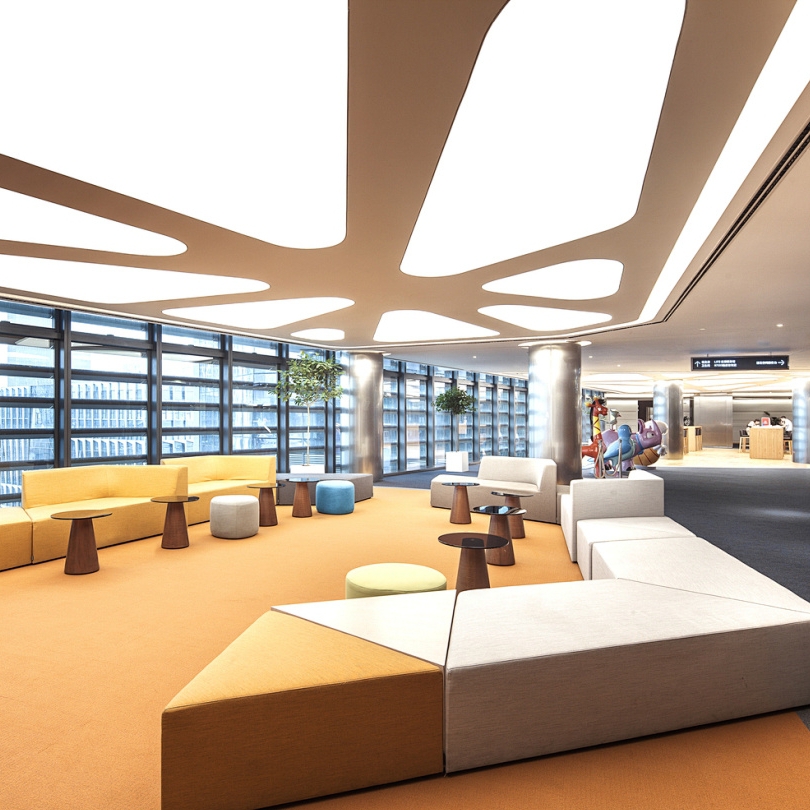

   Built for Architectural Applications

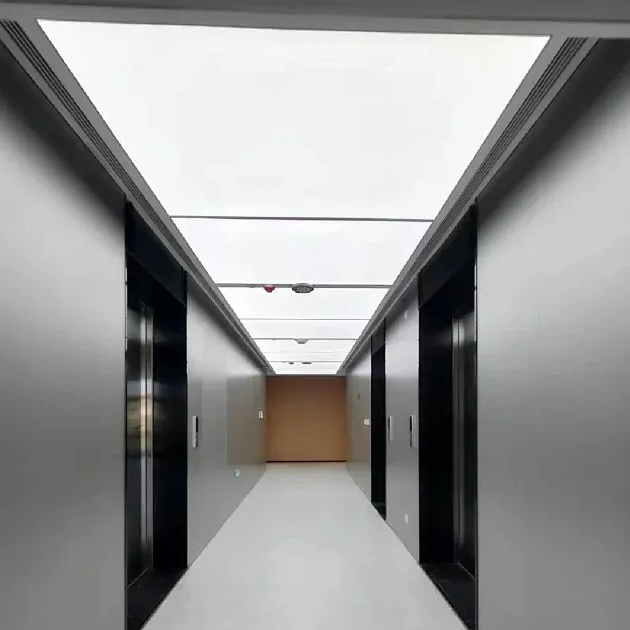

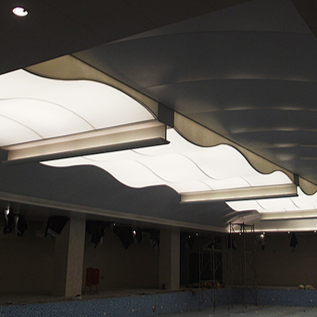

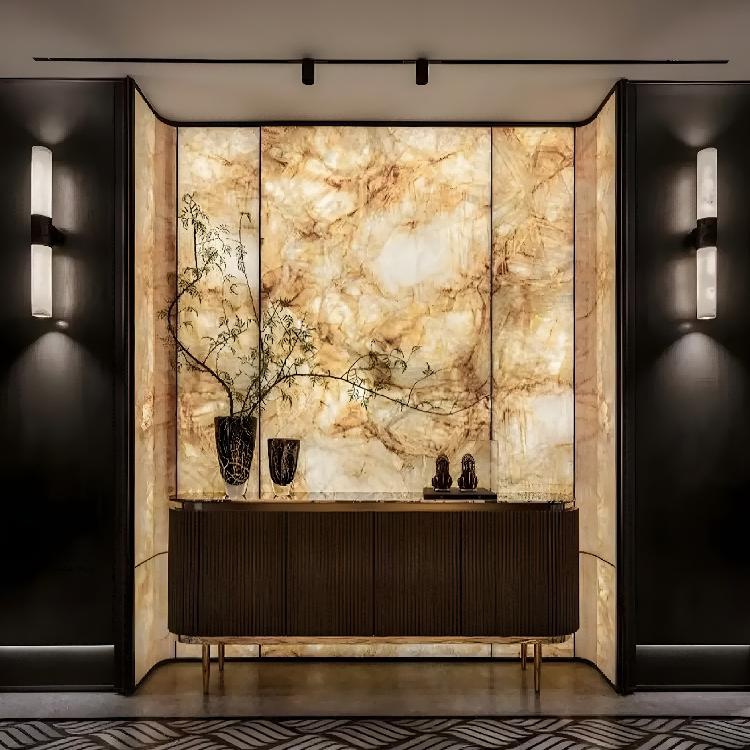

   Ideal for stretch ceilings, translucent stone backlighting, curved walls, corridors, exhibition spaces, and creative lighting projects.

Contact Us
Poster
Parameter
Size
Lighting Distribution
Layout Data
Video
Download
Message

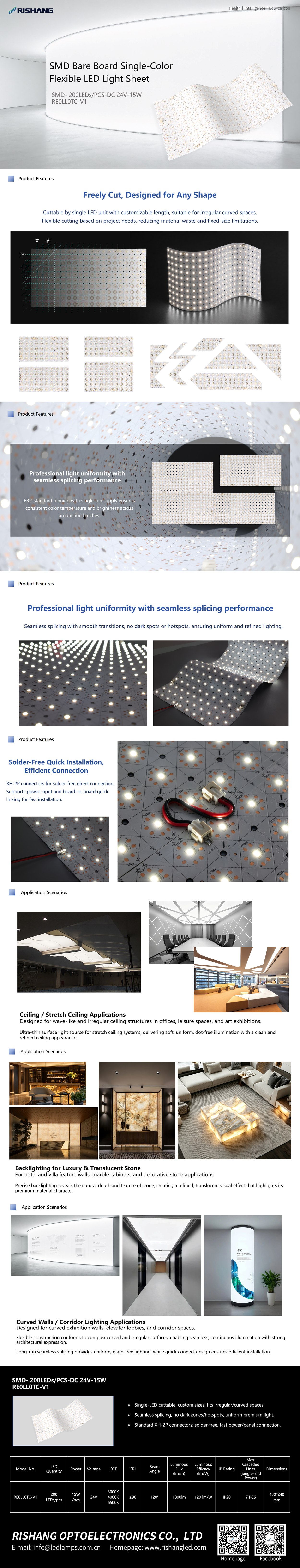

Product Poster


Technical Parameter

P/N LED Color CCT (K) WL (nm) CRI SDCM Beam Angle Luminous Efficacy (Im/w) Working voltage (V DC) Working voltage Power (w/piece)
RE0LL0TC-V1 White 3000 ≥90 ≤5 ≥115 1650 110 24 15
RE0LL0TC-V1 White 4000 ≥90 ≤5 ≥115 1800 120 24 15
RE0LL0TC-V1 White 6500 ≥90 ≤5 ≥115 1800 120 24 15

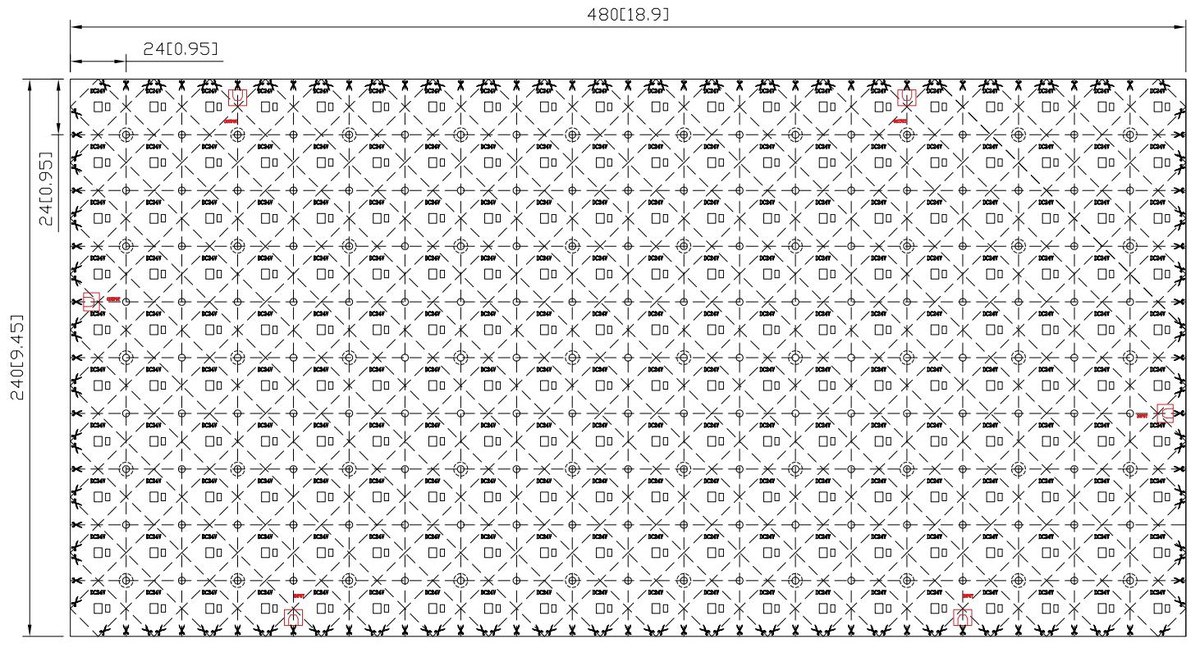

Product Size

rishang-flexible-led-sheet-re0ll0tc-v1-size

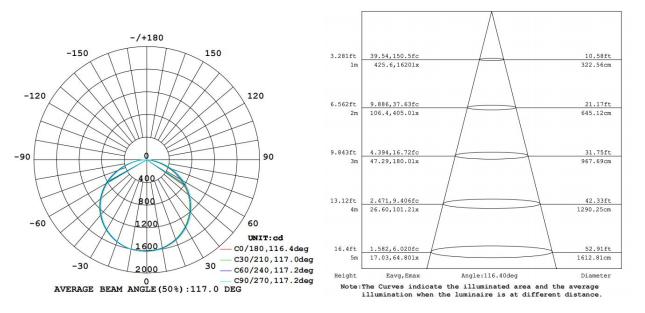

Light Distribution

rishang-flexible-led-re0ll0tc-sheet-v1-distribution

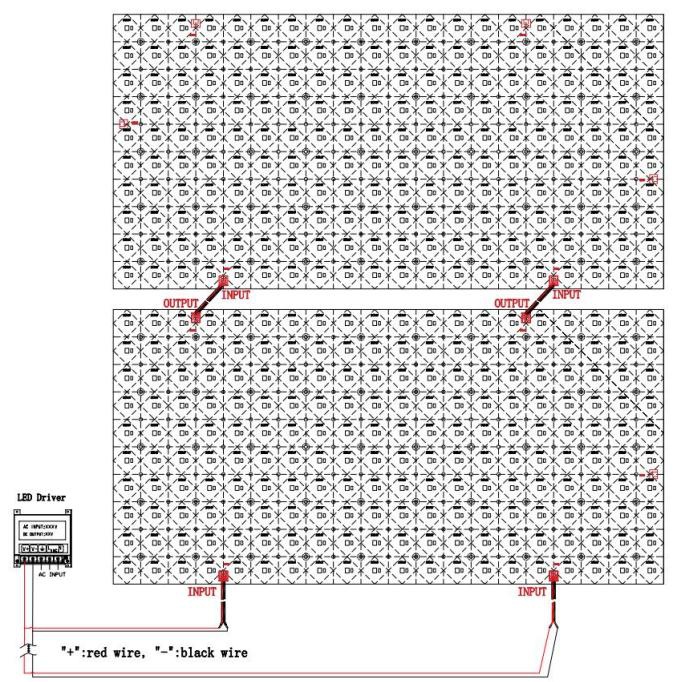

Layout Data

rishang-flexible-led-re0ll0tc-sheet-v1-connection
