SMD Strip-RX26X8ZC
308 LEDs/m-24V-6mm-7.2W/m-6mm ultra-narrow

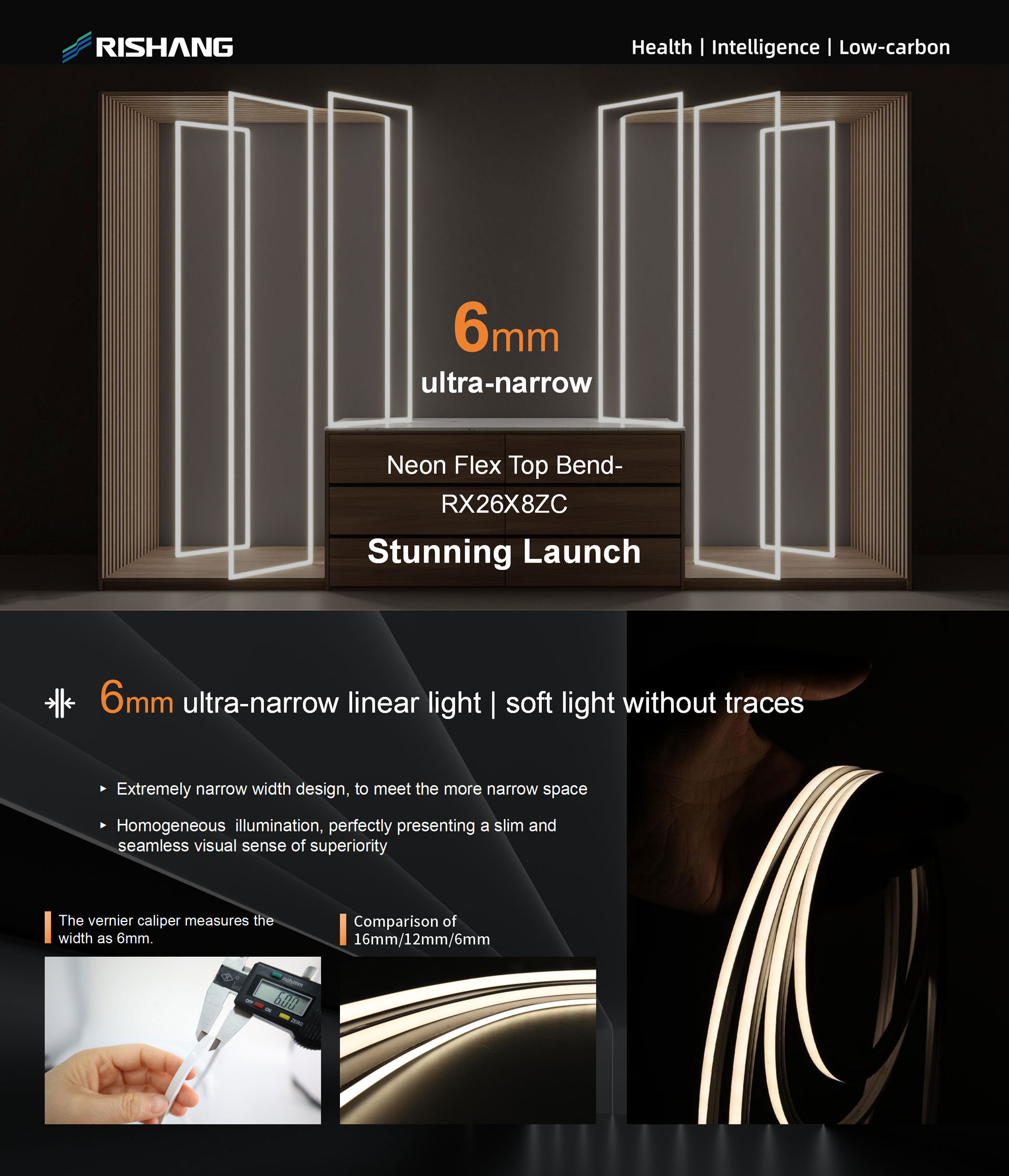

 6mm ultra-narrow linear light | soft light without traces.

 Extremely narrow width design, to meet the more narrow space.

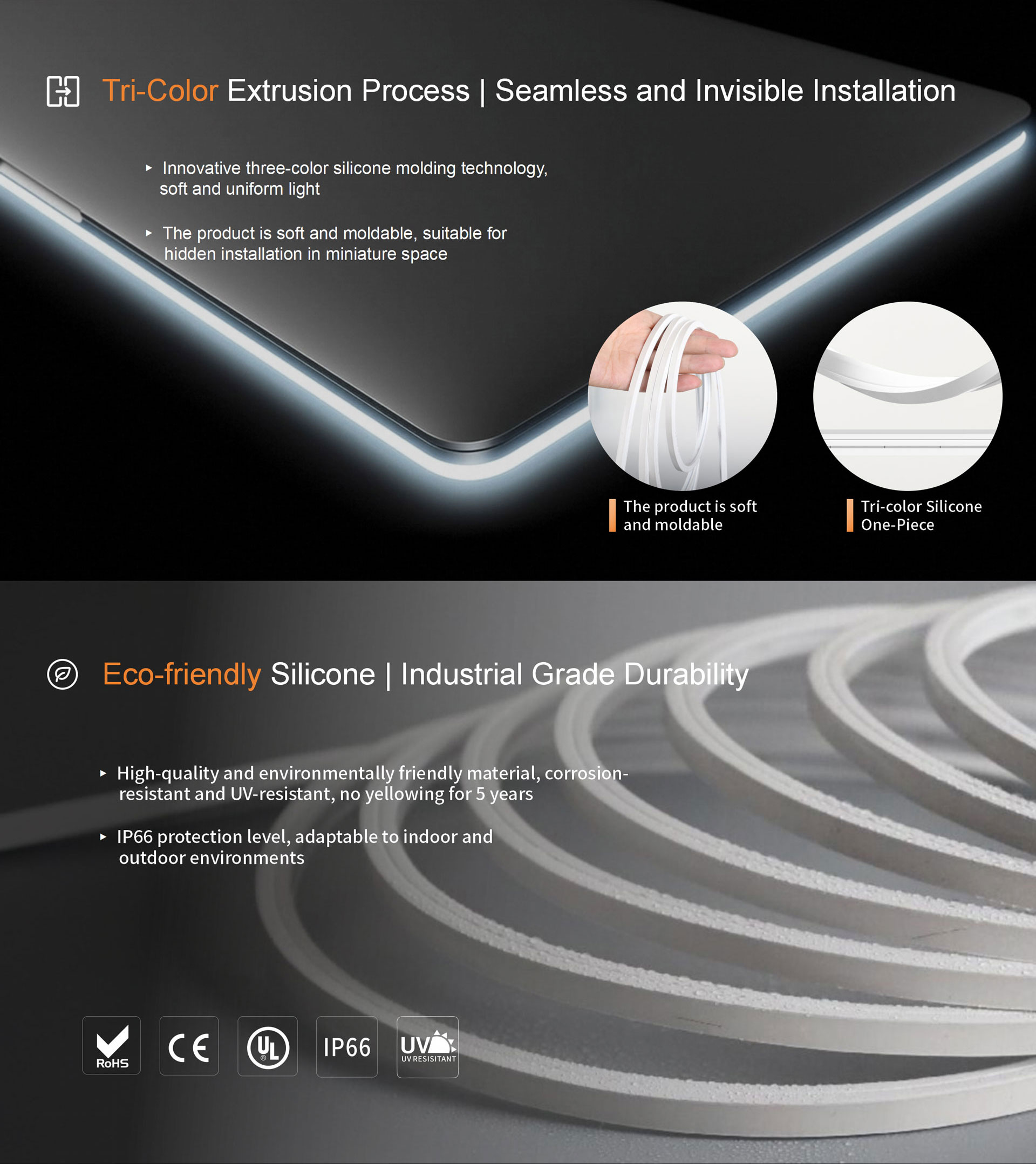

 Innovative three-color silicone molding technology, soft and uniform light.

 The product is soft and moldable, suitable for hidden installation in miniature space.

 Suitable for widely used in cabinet lighting, home decoration, architectural space structure outline and other scenes of delicate lighting needs.

Contact Us
Poster
Parameter
Size
Video
Download
Accessories
Message

Product Poster

Technical Parameter

P/N LED Color CCT (K) CRI SDCM Beam Angle(°) Luminous Flux(Lm/m) Luminous Efficacy (Im/w) Voltage(DC V) Power(W/m)
RX26X8ZC White 2700K ≥90 ≤5 ≥120 540 75 24 7.2
RX26X8ZC White 3000K ≥90 ≤5 ≥120 540 75 24 7.2
RX26X8ZC White 4000K ≥90 ≤5 ≥120 569 79 24 7.2
RX26X8ZC White 6500K ≥90 ≤5 ≥120 576 80 24 7.2

Product Size

RX26X8ZC 尺寸图01

Data Download

Accessories

Dimmer
Dimmer

 Model: KQ1CH-016-A01

 Input Voltage (Receiver): DC12/24V

 Working Voltage (Remote Controller): 3VDC(CR2032 Botton Cell)

 Output Type: PWM output, Constant Voltage

 Output Current: 1 Channel,≤8A per channel

 Output Power: 12V<96W ,24V<192W

 Output Signal: 2.4GHz

 Light: Single Color

 Control Sector: Single Sector

 Standby time: 12 Months

 Control Distance: 30 Meters
